Cambium Networks Configuration for Kiwire Hotspot
Cambium Networks Configuration for Kiwire Hotspot
Prerequisites
​
Before integrating the controller with Kiwire, it is necessary that the controller and access point:
-
are connected to the Internet
-
are reachable on the network
-
have an IP address assigned to the a through DHCP or static
Note:
-
Kiwire-hostname or Kiwire-ip can be obtain by contacting our technical support for our cloud customer. For enterprise client the ip will be on premises Kiwire ip address.
-
Social network hostname list can be obtained from Social network whitelist guide
Part 1: Cambium cnMaestro configuration
-
Login to your Cambium cnMaestro controller
-
Go to WLANs > Configuration > AAA Servers
-
Authentication Server
-
Host: Kiwire-hostname or Kiwire-Ip
-
Secret: create a secret pass phrase
-
Port: 1812
-
Timeout: 3 seconds
-
Attempts: 1
-
-
Accounting Server
-
Host: Kiwire-hostname or Kiwire-ip
-
Secret: secret same as authentication server
-
Port: 1813
-
Timeout: 3 seconds
-
Attempts: 1
-
Accounting Mode: Start-Interim-Stop
-
Accounting Packet: ticked
-
Interim Update Interval: 1800 seconds
-
-
Advanced Settings
-
NAS-Identifier: AP MAC address with capital letters and colon
-
Dynamic Authorization: ticked
-
Dynamic VLAN: ticked
-
Called Station ID: AP-MAC:SSID
-
-
Omaya 3.0 Administrator > Quick Setup > Dashboard
Documentation
Omaya 3.0 Administrator - Master Data &
System Setting
Venue
​

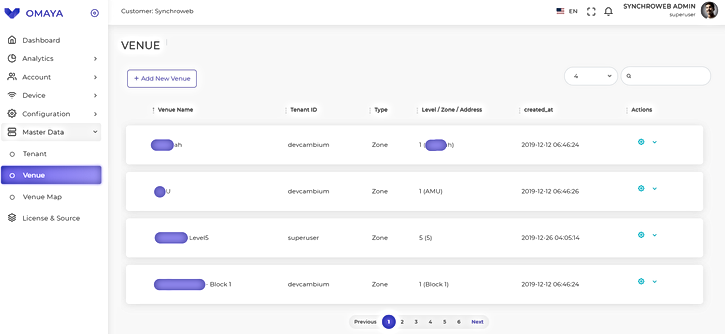

The venue module provides details of all the venue listed. To access the venue module click on Master Data > Venue from the navigation. On the venue listing module, you may search for specific venue by using the search field.
The field and its function description is listed below.
ADD NEW VENUE
Click on “Add New Venue” button and populate the required fields. Fill in the field with relevant information to complete the process.
Venue Information
The field and its function description is listed below.
Venue Settings
The field and its function description is listed below.
UPDATE OR DELETE VENUE
Click on update or delete icon from the venue listing. If you clicked the update icon, the update screen be display where you can update the setting of the venue. Click on the delete icon to delete the venue. A prompt will be display to ask for your confirmation to proceed to delete the venue. Please exercise with cautions as this not a reversible action
