Cambium cnPilot E400 Device Configuration for Kiwire

Step 1 – Login to your cnPilot E400 admin panel.

• Go to Configure-WLAN tab to setup your hotspot networks

• Go to Basic tab to setup and enable the SSID

Step 2 – Go to Radius Server tab to configure the radius server which is Kiwire.

• Set configuration as below details and leave others as default

• Authentication Server 1 Host: Kiwire IP address

• Authentication Server 1 Secret: insert a key and must be the same as Kiwire shared secret key

• Authentication Server 1 Port: 1812

• Accounting Server 1 Host: Kiwire IP address

• Accounting Server 1 Secret: same as Authentication Server 1 Secret

• Accounting Server 1 Port: 1813

• Accounting Mode: start-interim-stop

• NAS Identifier: AP MAC Address (must matched with Kiwire NAS ID)

• Dynamic Authorization: Enable

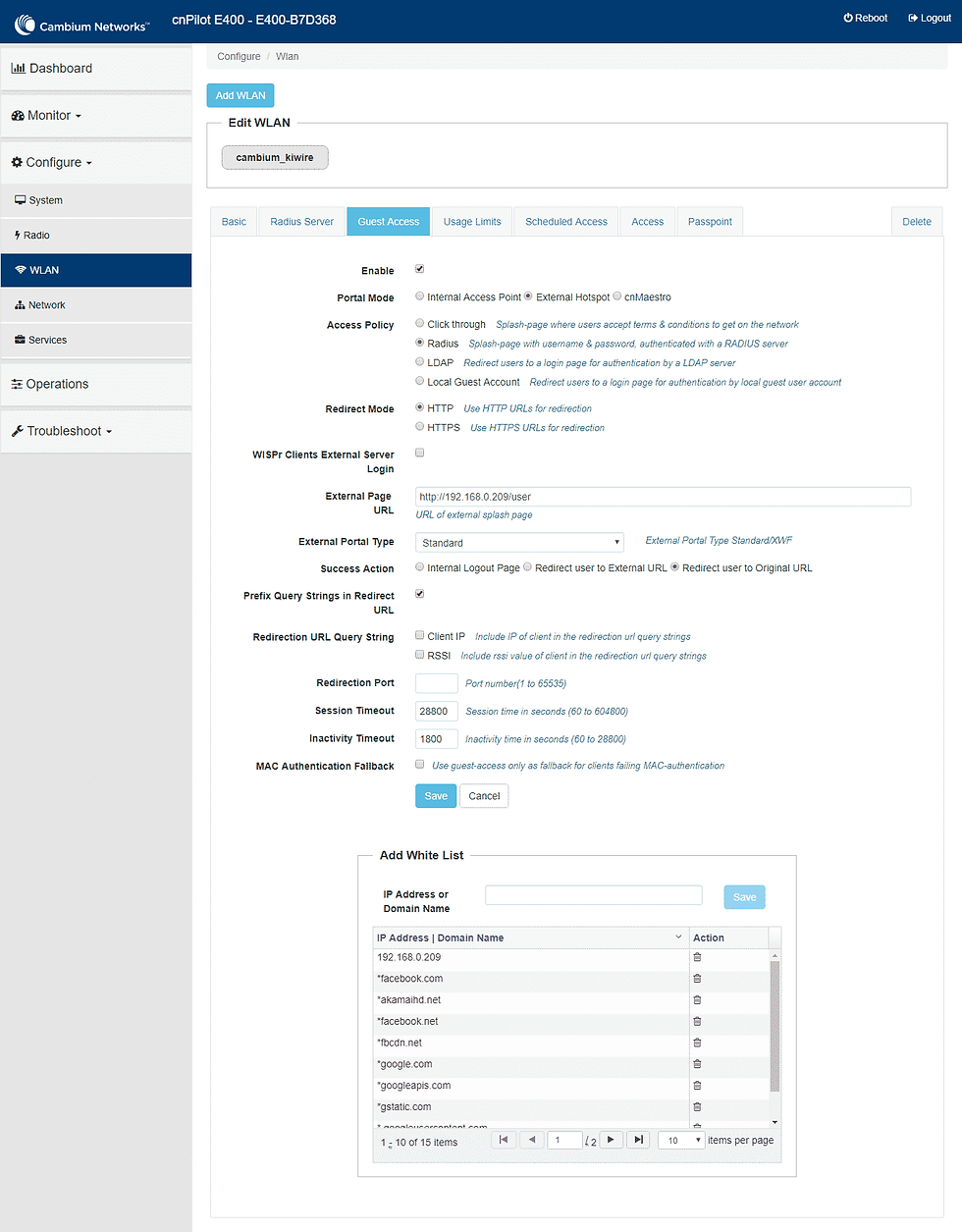

Step 3 – Next, go to Guest Access tab to configure the captive portal settings.

• Set configuration as below and leave others as default.

• Enable: ticked

• Portal Mode: External Hotspot

• Access Policy: Radius

• Redirect Mode: HTTP

• External Page URL: http://kiwire-ip/user

• Success Action: Redirect user to Original URL

• Whitelist:

  • kiwire ip

  • synchroweb.com (if using social login)

  • *facebook.com (if using Google+ social login)

  • *akamaihd.net (if using Google+ social login)

  • *facebook.net (if using Google+ social login)

  • *fbcdn.net (if using Google+ social login)

  • *google.com (if using Google+ social login)

  • *googleapis.com (if using Google+ social login)

  • *gstatic.com (if using Google+ social login)

  • *googleusercontent.com (if using Google+ social login)

  • *instagram.com (if using Instagram social login)

  • *twitter.com (if using Twitter social login)

  • *twimg.com (if using Twitter social login)

  • *vk.com (if using VK social login)

  • *vk.me (if using VK social login)

Step 4 – Kiwire Configuration Open your web browser and type in http://kiwire-ip/admin to access your Kiwire admin panel.

Step 5 – Go to Device-NAS and click add NAS to add your Ruijie.

• Device type is Cambium

• NAS ID is your AP MAC Address (same as the NAS Identifier from Cambium AP)

• IP address is your Cambium AP IP address

• Shared Secret Key is the same as secret from the Cambium AP secret

• COA Port is any port

• NAS username and password is your Cambium AP username and password

• Address is your Cambium AP location

• Description is remark of your Cambium AP

Step 6 – Next, we go to Device-Zone to assign which zone we want to assign splash page.

• We can assign zone based on NAS ID, VLAN ID, IP address, or SSID

• Create a new zone by clicking Create Zone

• Put a name to it, Link To User and Limit Connected User can be empty

• Enable the Status

Step 7 – Configuration is now complete. You have completed the configuration of both Kiwire and Cambium
