Kiwire 3.0 Administrator - Device & Controller Setup Guide
Kiwire 3.0 Administrator - Device & Controller Setup Guide
Cambium Networks Configuration for Kiwire Hotspot
Cambium Networks Configuration for Kiwire Hotspot
Prerequisites
​
Before integrating the controller with Kiwire, it is necessary that the controller and access point:
-
are connected to the Internet
-
are reachable on the network
-
have an IP address assigned to the a through DHCP or static
Note:
-
Kiwire-hostname or Kiwire-ip can be obtain by contacting our technical support for our cloud customer. For enterprise client the ip will be on premises Kiwire ip address.
-
Social network hostname list can be obtained from Social network whitelist guide
Part 1: Cambium cnMaestro configuration
-
Login to your Cambium cnMaestro controller
-
Go to WLANs > Configuration > AAA Servers
-
Authentication Server
-
Host: Kiwire-hostname or Kiwire-Ip
-
Secret: create a secret pass phrase
-
Port: 1812
-
Timeout: 3 seconds
-
Attempts: 1
-
-
Accounting Server
-
Host: Kiwire-hostname or Kiwire-ip
-
Secret: secret same as authentication server
-
Port: 1813
-
Timeout: 3 seconds
-
Attempts: 1
-
Accounting Mode: Start-Interim-Stop
-
Accounting Packet: ticked
-
Interim Update Interval: 1800 seconds
-
-
Advanced Settings
-
NAS-Identifier: AP MAC address with capital letters and colon
-
Dynamic Authorization: ticked
-
Dynamic VLAN: ticked
-
Called Station ID: AP-MAC:SSID
-
-
Omaya 3.0 Administrator > Quick Setup > Dashboard
Documentation
Kiwire 3.0 Administrator > Marketing & Campaigns > WhatsApp
Kiwire 3.0 Administrator - Marketing & Campaigns
Login Engine - WhatsApp Login
1. Go to Admin Panel > Click Login Engine > Page Designer > Add Page​
2. Create add new page on page designer, choose on panel and drag the WhatsApp login template that page need for insert number. Then save the first page name
3. Create other New Page as second landing page for verify WhatsApp code
4. After landing page, click on Journey in Login Engine, add Journey. Drag the page design of WhatsApp Login into above space and enable it to active the journey.
4. In zone mapping, create zone. Enable to active, set name, journey, and click create. Next, set the zone rules.
5. Next, go to Login Engines > Zones Mapping
6. In zone mapping, create zone. Enable to active, set name, journey, and click create. Next, set the zone rules. Click Create to save.
7. Create the template for WhatsApp content. First add template, setting and update.
8. On module Integration WhatsApp login, Enable the function first then follow the next step for you as superuser.
8.1 Check your whatsapp on mobile phone. The token as unique id has sent to your whatsapp number by kiwire.
8.2 Copy the token id and paste into token space. Then complete the next setting and save.

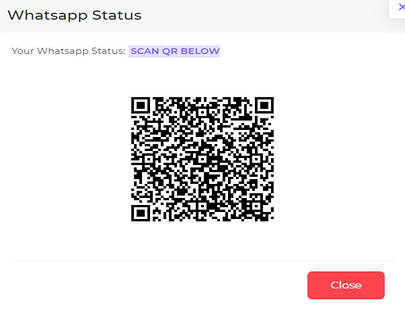

8.3 Click the ‘Check Status’ and this QR code will appear if all the settings are completed. Then the administrator or PIC can scan via their WhatsApp linked device.
8.4 Appear connected status with your whatsapp number as an admin in tenant. Can ‘logout’ from connected if want to change the administrator.
9. The description of field and function in WhatsApp login
